Brand Name: Laiyuan
Model Number: LY-IRCH-15001
Place of Origin: Jiangsu, China (Mainland)
maximus ceramic infrared heater
Specifications :

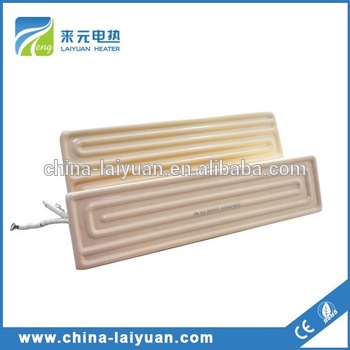

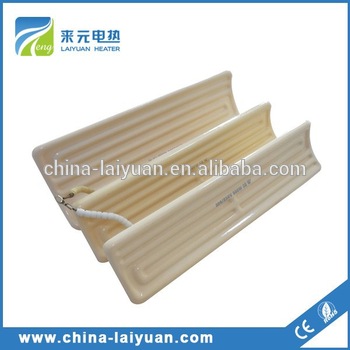

IR ceramic heater
-Material:ceramic for body
-Used in chemical industry
-High quality & best price
IR ceramic heater
Embedding type ceramic far infrared radiated elements apply glaze with high radiance,ceramic with good heat and shock property as base,and are sintered once by nichrome wire.
Components :
1.Base body:made of ceramic material with good heat shock property.
2.Heating nature:sintered by high quality nichrome wire.
3.Glaze:composed of metal oxide material with good far infrared radiated property.
4. Put right amount of additive and improve radiant intensity and strengthen adaptability of glaze billet
Main technical parameter and property:
1.Radiated characteristic: the tiptop single color of radiance of element can reach 0.9 |
|
2.Time of heating response: from room temperature to surface temperature of radiated plate, the fixed time will not exceed 20 minutes. |
|
3.Cold and hot resistance: the base body is heated to 800 C and put in cold water repeatly for many times and no cracking. After cold and hot mutual change test for five times, no peel and no craze. |
|
4. The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage. |
|
5.Good chemical stability; strong causticity-resistance; perfect oxidation-resistance |
|
6.The heating damage of non radiated surface is small. |
|
7. Resistance in common temperature: |
10^12 ohm ^0cm |
8.Uneven degree for radiated surface temperature:≤15% |
|
9. Rupture strength for base body: |
440Kg/cm2 |
10.Tolerance of power: |
≤5% at rating working voltage |
11.Cold state insulated resistance |
500V tramegger>2 mΩ |
12.Thermal state insulated resistance: |
500V tramegger>5 mΩ |
13.Using life span: |
>3000 hours |
14.The effect of energy saving is obvious, increasing 10-25% compared with silicon carbide element |
|
15. The life span can prolong more than a few times compared with silicon carbide element. |
|
Yancheng Laiyuan Electric Equipment Co.,Ltd. was established in 2005, lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Tubular heater, Thermocouple, Immersion Heater, Band Heater, Ceramic Infrared Heater ,High-temperature Cable and other heating elements.
Yancheng Laiyuan is by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements for customers to create maximum value .
Yancheng Laiyuan is by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements for customers to create maximum value .
“QUALITY WITHOUT COMPROMISE”, Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect laiyuan brand .
